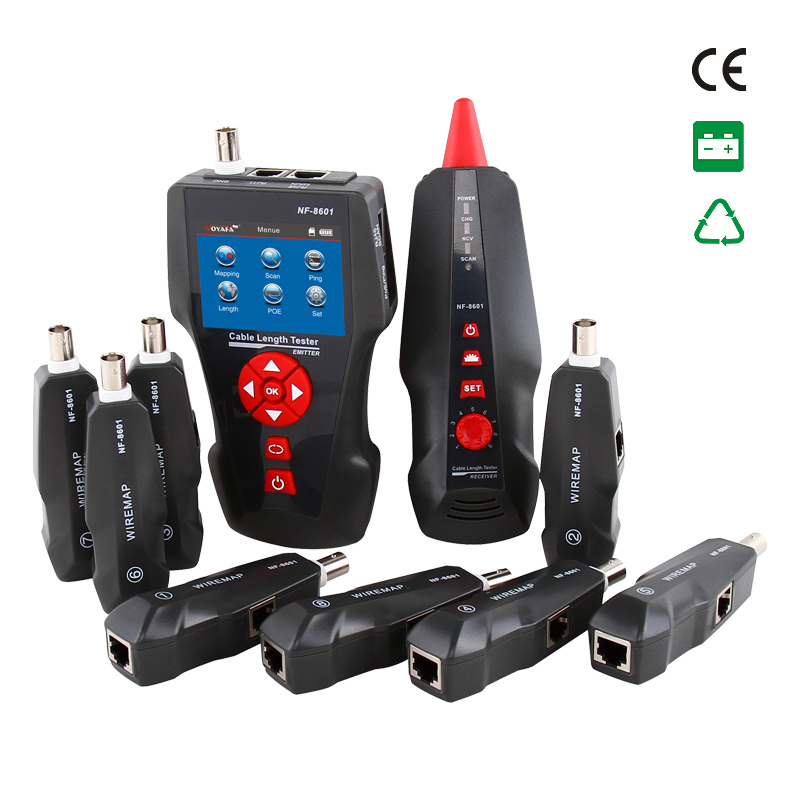

Network Tester w/Tracker & POE PING

Network Tester Kit with Tracker and 8 Remotes w/ping

מק"ט: HP-TESTER-8-PING קטגוריה:
תיאור

תיאור

Main function:

  1. PoE / PING testing.
  2. Trace targeted cable among lots of unknown cables
  3. Port flash function help trace lan cable connected to swticher or router visually, no need of receiver.
  4. Capable of scanning cable on PoE switch without damaging the device.
  5. Locate faults for RJ11/RJ45/BNC Cable
  6. measure cable length accurately
  7. Voltage detecting function.
  8. 8 remotes included , improving work effiency.
  9. Memory and storage function, export or upload the data from PC.
  10. Built-in Lithium battery and color screen

 Application:

  1. 3.7V lithium battery power supply ,Convenient and durable.
  2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
  3. can save and export 160 groups of data to computer (txt format).
 Technical indexes:
 NF-8601W Transmitter specifications
 Indictor  LCD 320×240 mm, with backlight
 Cable test types  STP/UTP 5E,6E network , telephone , coaxial cable
 Max. distance of wiremap  2000 m
 Max. distance of tracing  2000m
 Max. distance of cable length  1000 m
 Min. distance of calibration  10 m
 Accuracy  3% ( after calibration )
 Compatible connectors  RJ11,RJ45 ,BNC, PING/POE
 Cable map indication  LCD (#1-#8)
 Battery Type  3.7V lithium battery 1800mAh
 Work temperature / humidity  10℃ ~ -60℃ / 0℃~70℃
 Dimension(LxWxD)  173x92x34mm
 NF-8601W Receiver specifications
 Cable hunting  RJ11,RJ45, BNC
 Types of cable  ≥ 2 cores
 Battery Type  3.7V lithium battery 1800mAh
 Dimension(LxWxD)  183x58x35 mm
 NF-8601W Remote unit specifications
 Compatible connectors  RJ11,RJ45, BNC
 Remote  8
 Dimension(LxWxD)  106x32x30mm

 Attention:

1.Don’t connect high voltage live lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because our item with sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

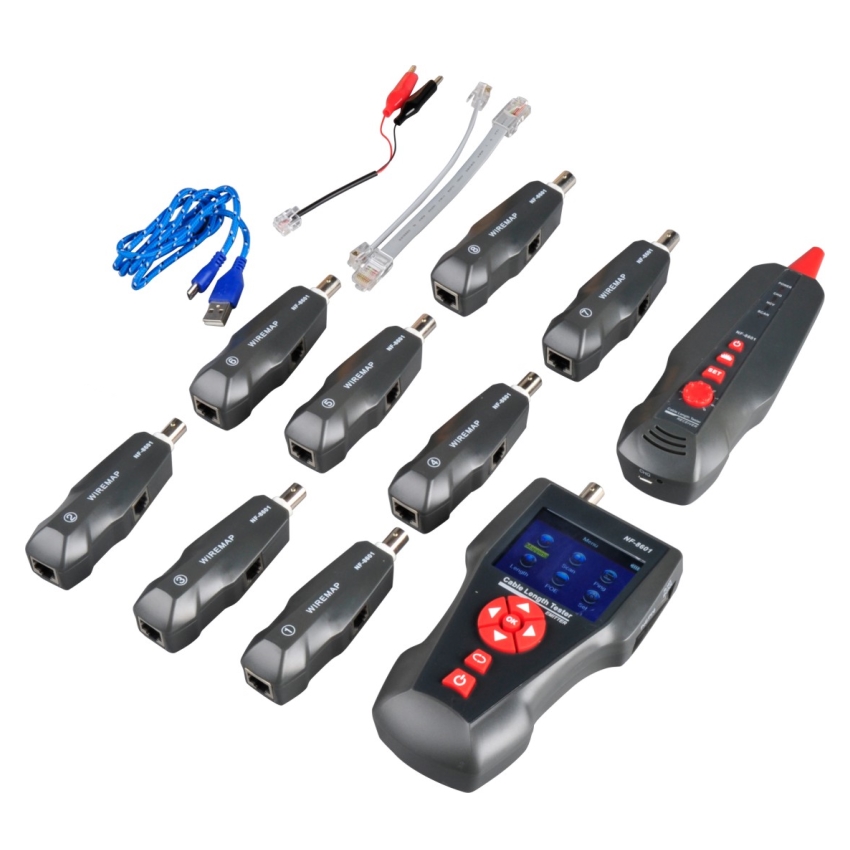

 Accessories Included:

earphone x 1 set

battery x 2 sets

telephone line adapter x 1 set

network cable adapter x 1 set
Charging adaptor x 1 set

Cable clips x 1 set
